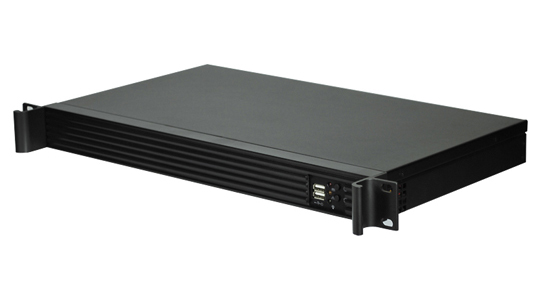

1U Short Depth Chassis Ideal for Wall Rack/Appliance Servers - Clearance
1U Short Depth Chassis Ideal for Wall Rack/Appliance Servers - Clearance
| PRODUCT CODE | SKU: SC-1250 |
|---|---|
| KEY PRODUCT FEATURES: |
|
Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
-
Reliable and fast service -
Global distribution -
High quality & affordable -
Stock held in UK
| Technical Details | ||
|---|---|---|
| Case Form Factor | 1U Rackmount | |
| Motherboard Compatibility | Mini-ITX (6.7" x 6.7") | |
| Drive Bays |
External 5.25" |
0 |
| External 3.5" | 0 | |
| Internal 3.5" | 1 (Or 2 X 2.5") | |
| Internal 2.5" | 1 (Or 1 X 3.5") | |
| Hotswap 3.5" | 0 | |
| Hotswap 2.5" | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | Not Applicable | |
| Expansion Slots | Full Height | 1 |
| Low Profile | 0 | |
| Cooling | 2 x 40mm fans complete with molex pass through connectors to run from PSU. | |
| Power Supply Form Factor | Supports 1U Flex or 1U Standard PSU (maximum length 200mm) | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 2 | |
| USB 3.0 | 0 | |
| Serial | 0 | |
| Indicators | Power and HDD LEDs | |
| Colour | Black | |
| Material | Steel | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | ( W x D x H ): 19" x 9.8" x 1.7" (430mm x 250mm x 44mm) | |
| Weight | 3.40 kg (Approx) | |
| What's Included | ||
|
||
