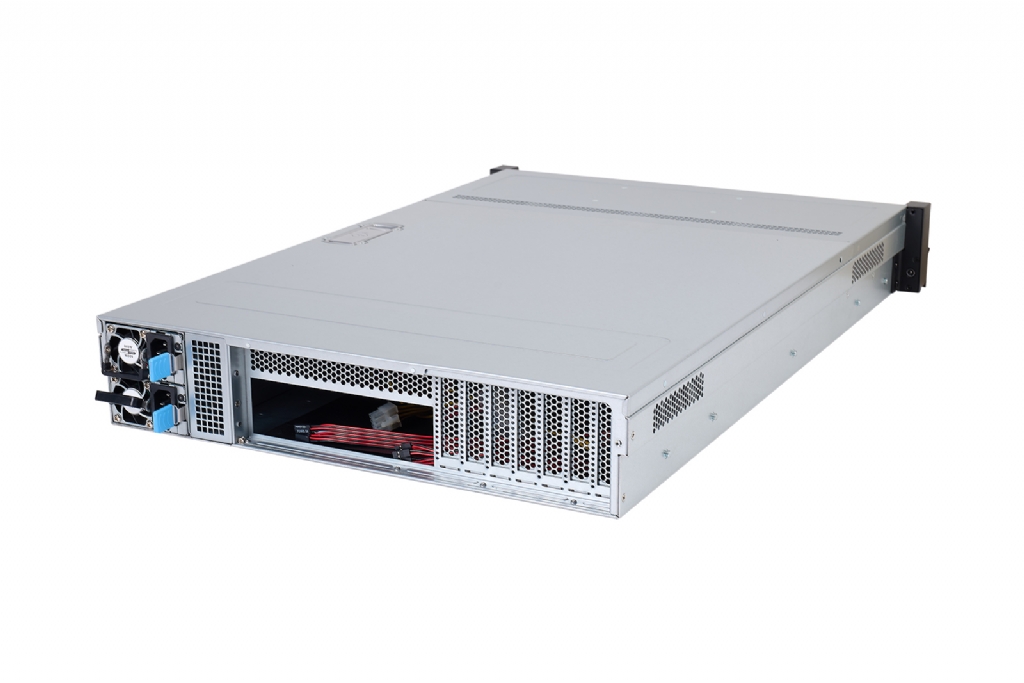

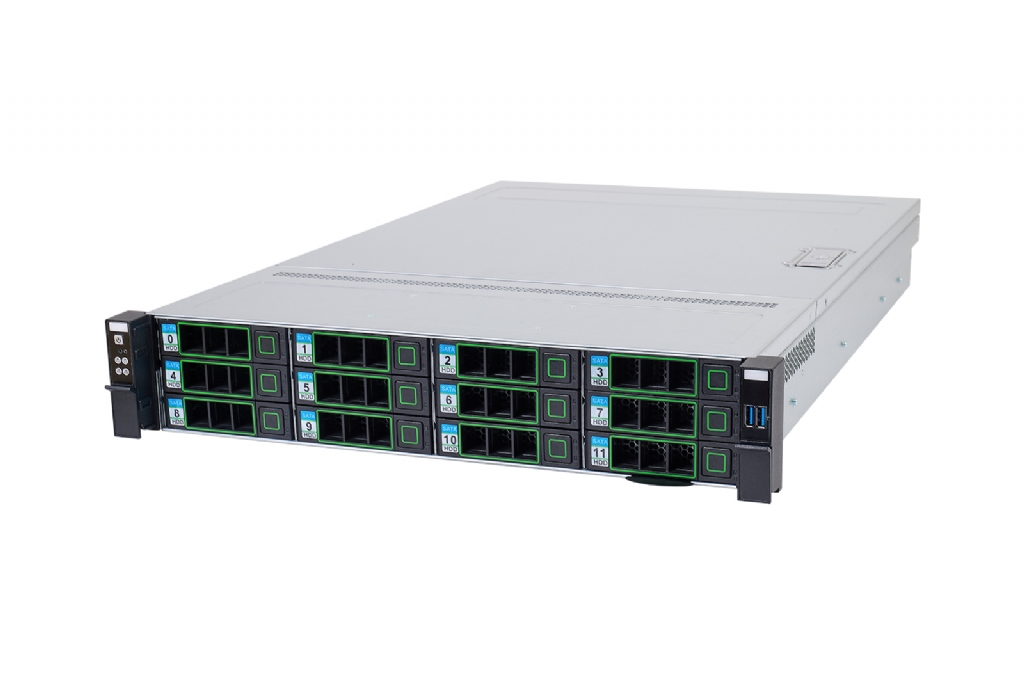

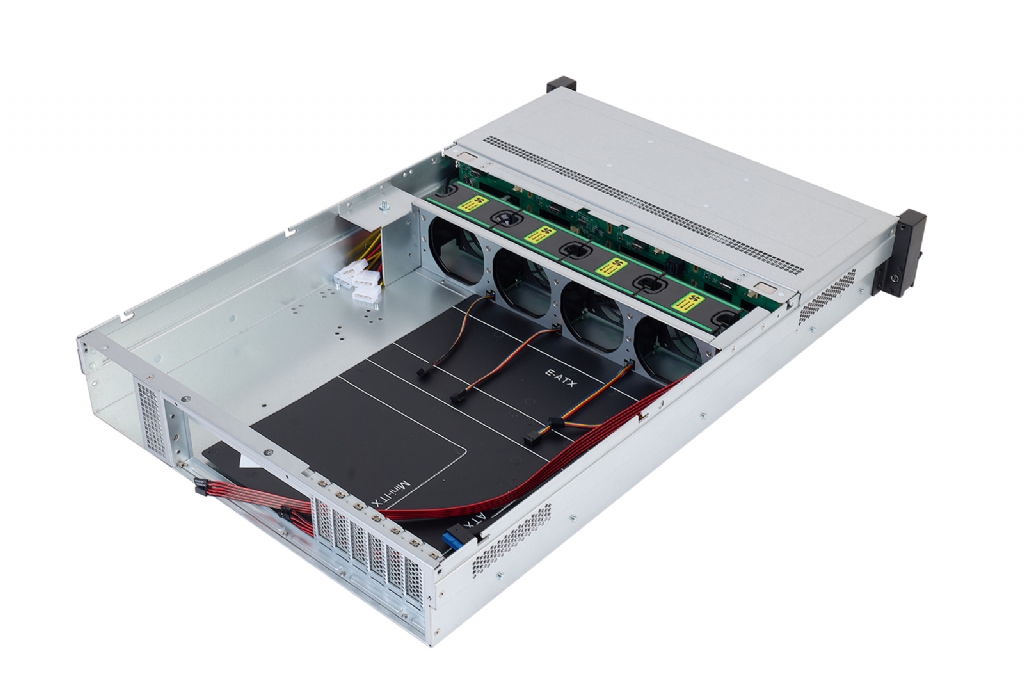

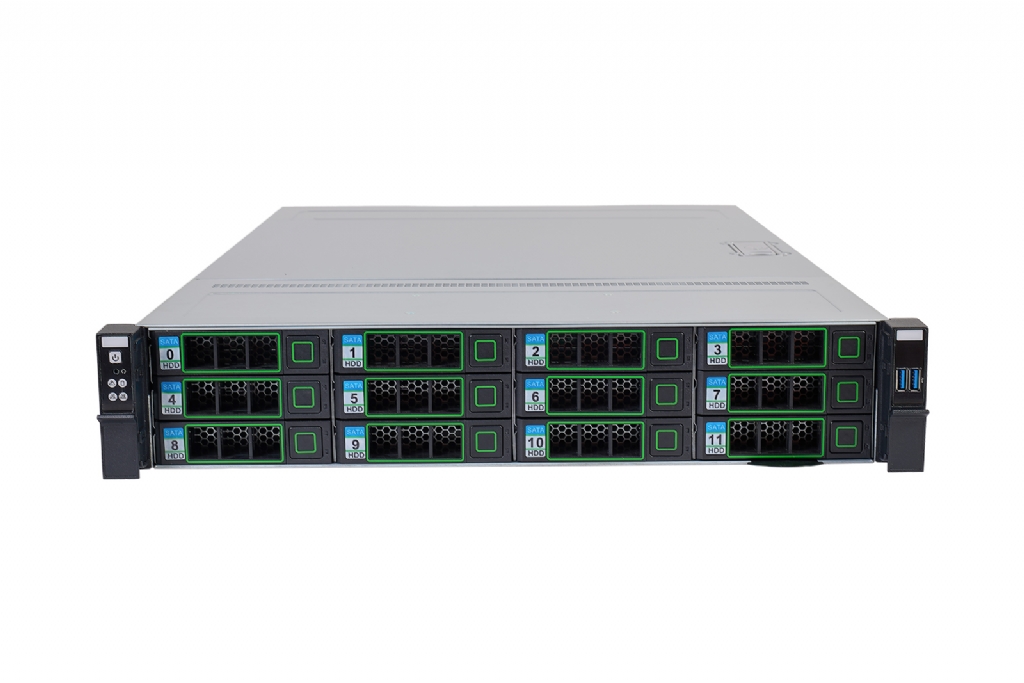

Logic Case LC-2680-12B-WH 2U Rackmount Storage Chassis - 12x 3.5 SATA Hot-Swap - 680mm Depth
Logic Case LC-2680-12B-WH 2U Rackmount Storage Chassis - 12x 3.5 SATA Hot-Swap - 680mm Depth
| PRODUCT CODE | SKU: LC-2680-12B-WH |
|---|---|
| KEY PRODUCT FEATURES: |
|
Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
-
Reliable and fast service -
Global distribution -
High quality & affordable -
Stock held in UK
| Technical Details | ||
|---|---|---|
| Case Form Factor | 2U Rackmount | |
| Motherboard Compatibility | Mini-ITX, Micro ATX, Standard ATX, Extended ATX | |
| Drive Bays |
External 5.25" |
0 |
| External 3.5" | 0 | |
| Internal 3.5" | 0 | |
| Internal 2.5" | 0 | |
| Hotswap 3.5" | 12 | |
| Hotswap 2.5" | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | 12x SAS/SATA 12Gbps with 3x SFF-8643 Connectors | |
| Expansion Slots | Full Height | 0 |
| Low Profile | 7 | |
| Cooling | 3 x 80mm | |
| Power Supply Form Factor | 2U Single or 2U Redundant | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 0 | |
| USB 3.0 | 2 | |
| Serial | 0 | |
| Indicators | Power, LAN, and HDD LEDs | |
| Colour | Black | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | 680mm*430mm*89mm (D*W*H) | |
| Weight | 16.1kg (Approx) | |
| What's Included | ||
|
||
| Replaces Model | SC-2312 | |
