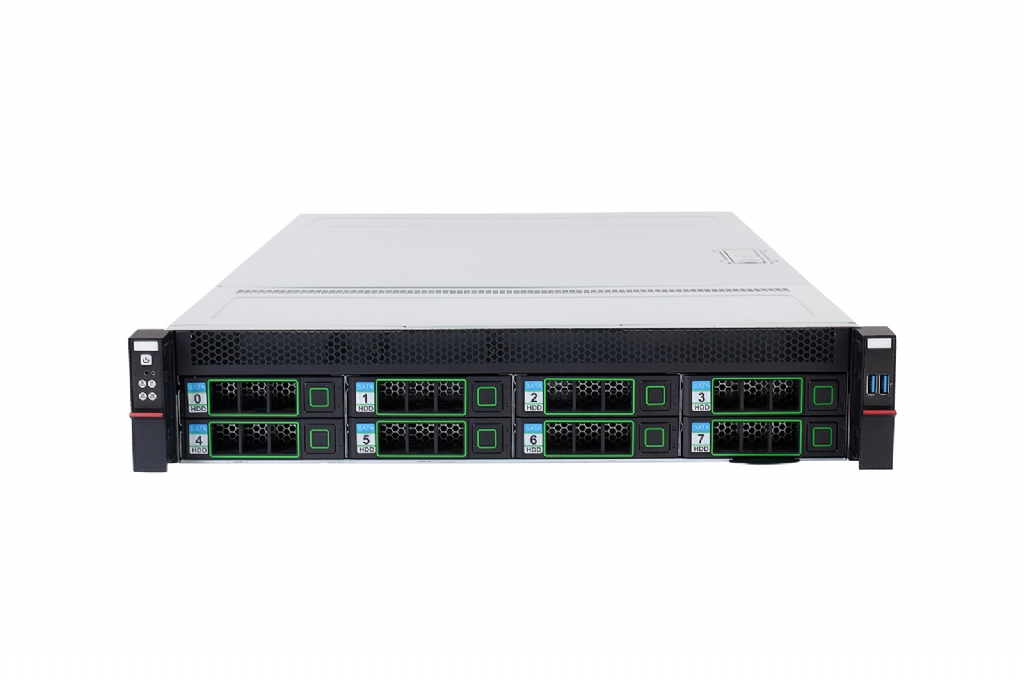

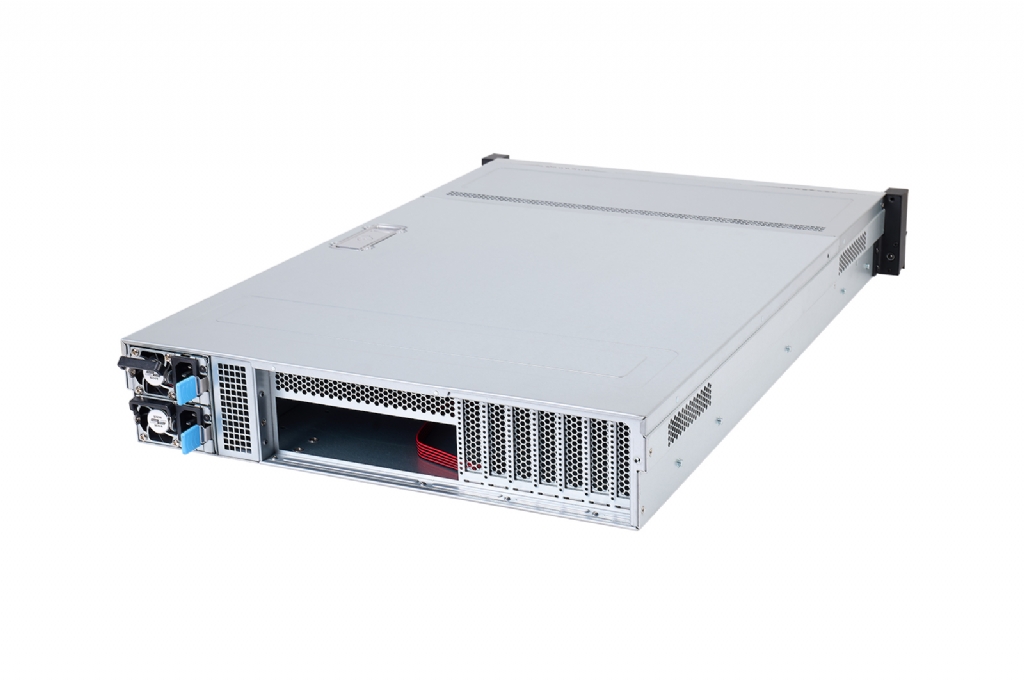

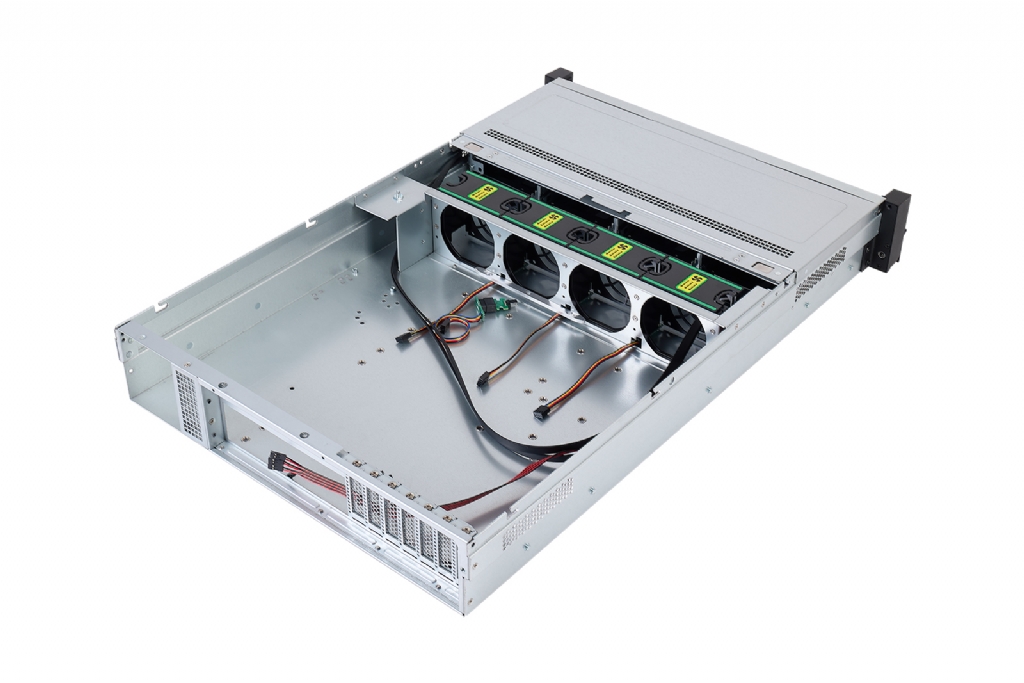

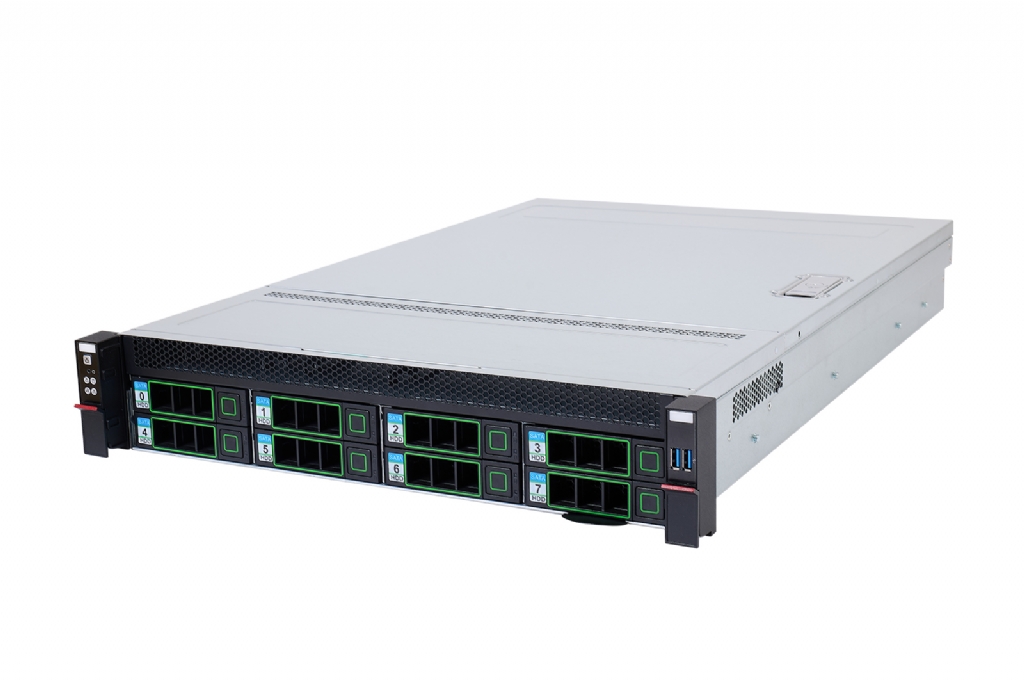

Logic Case LC-2680-8B-WH 2U Rackmount Storage Chassis - 8x 3.5 SATA Hot-Swap - 680mm Depth

Logic Case LC-2680-8B-WH 2U Rackmount Storage Chassis - 8x 3.5 SATA Hot-Swap - 680mm Depth

PRODUCT CODE SKU: LC-2680-8B-WH
KEY PRODUCT FEATURES:
  • 2U Rackmount Form Factor
  • 680mm Chassis Depth
  • 430mm Chassis Width
  • 88.8mm Chassis Height
  • 2U Redundant PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 8 Hot-Swap Bays - 3.5"
  • 7 Low Profile PCI Expansion Slots
servercase-logo

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

01283 576162 | [email protected]

www.servercase.co.uk

BUY LC-2680-8B-WH NOW shopping-icon
  • Reliable and fast service Reliable and fast service
  • Global distribution Global distribution
  • High quality & affordable High quality & affordable
  • Stock held in UK Stock held in UK
logo-icon
Technical Details
Case Form Factor 2U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX, Extended ATX
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 0
Hotswap 3.5" 8
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane 8x SAS/SATA 12Gbps with 2x SFF-8643 Connectors
Expansion Slots Full Height 0
Low Profile 7
Cooling 3 x 80mm
Power Supply Form Factor 2U Single or 2U Redundant
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 0
USB 3.0 2
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 680mm*482mm*89mm (D*W*H)
Weight 13.5kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
Replaces Model SC-2808
