4U Server Case w/ 24x 3.5" Hot-Swappable SATA/SAS Drive Bays, 12G Backplane - CLEARANCE
4U Server Case w/ 24x 3.5" Hot-Swappable SATA/SAS Drive Bays, 12G Backplane - CLEARANCE
| PRODUCT CODE | SKU: SC-4324 |
|---|---|
| KEY PRODUCT FEATURES: |
|
Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
-
Reliable and fast service -
Global distribution -
High quality & affordable -
Stock held in UK
| Technical Details | ||
|---|---|---|
| Case Form Factor | 4U Rackmount | |
| Motherboard Compatibility | Support EEB (12"x13"), CEB (12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7") | |
| Drive Bays |
External 5.25" |
0 |
| External 3.5" | 0 | |
| Internal 3.5" | 0 | |
| Internal 2.5" | 2 | |
| Hotswap 3.5" | 24 | |
| Hotswap 2.5" | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |

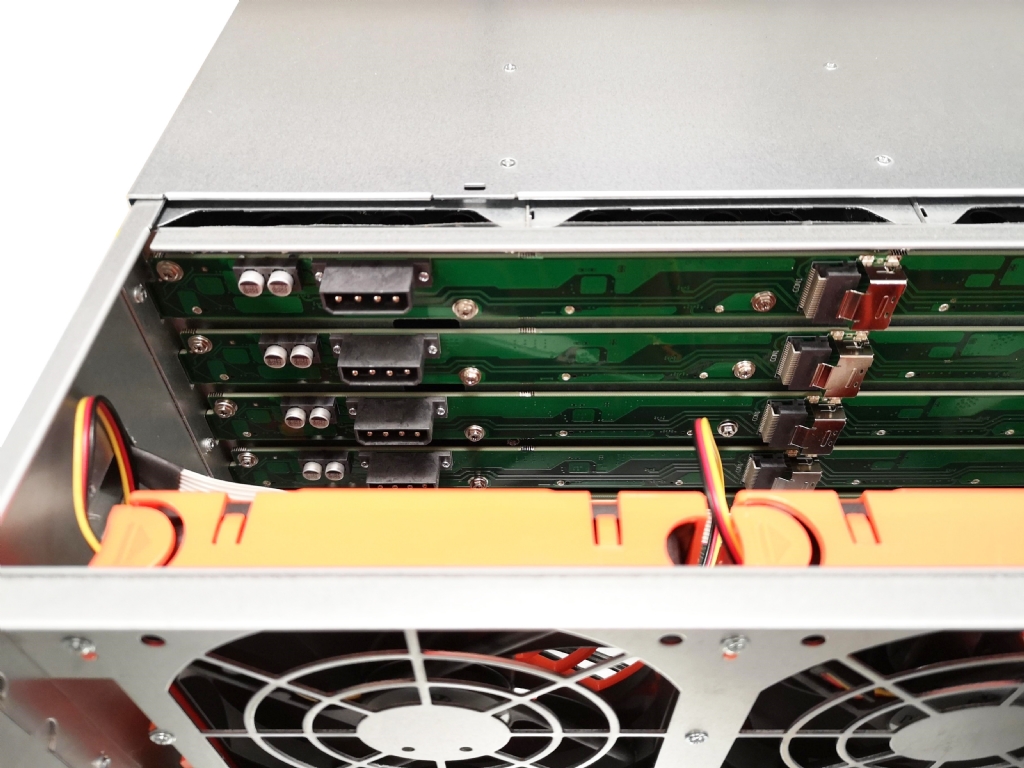

| Hot-Swap Backplane |
Six internal SFF-8643 HD Mini SAS connectors support up to twenty-four 6Gb/s 3.5" or 2.5" SATA (II or III) or SAS 6 or 12Gb/s hard drives |
|
| Expansion Slots | Full Height | 7 |
| Low Profile | 0 | |
| Cooling | 3x 120mm High CFM Hot-Swap Fans (Middle Fan Wall) 2x 80mm Fans (Rear) |
|
| Power Supply Form Factor | Standard ATX Mini Redundant (Note Requires Optional Bracket) |
|
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 2 | |
| USB 3.0 | 0 | |
| Serial | 0 | |
| Indicators | Power, LAN, and HDD LEDs | |
| Colour | Black | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | ( W x D x H ): 19" x 25.5" x 7.0" (483mm x 650mm x 176mm) | |
| Weight | 20 kg (Approx) | |
| What's Included | ||
|
||
