4U Short Storage Chassis w/ 8x 3.5" SATA Hot-Swap Bays - EATX Motherboard Support - CLEARANCE
4U Short Storage Chassis w/ 8x 3.5" SATA Hot-Swap Bays - EATX Motherboard Support - CLEARANCE
| PRODUCT CODE | SKU: SC-43400-8HS |
|---|---|
| KEY PRODUCT FEATURES: |
|
Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
-
Reliable and fast service -
Global distribution -
High quality & affordable -
Stock held in UK
| Technical Details | ||
|---|---|---|
| Case Form Factor | 4U Rackmount | |
| Motherboard Compatibility | Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7") | |
| Drive Bays |
External 5.25" |
0 |
| External 3.5" | 0 | |
| Internal 3.5" | 0 | |
| Internal 2.5" | 0 | |
| Hotswap 3.5" | 8 (or 2.5") | |
| Hotswap 2.5" | 8 (or 3.5") | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |

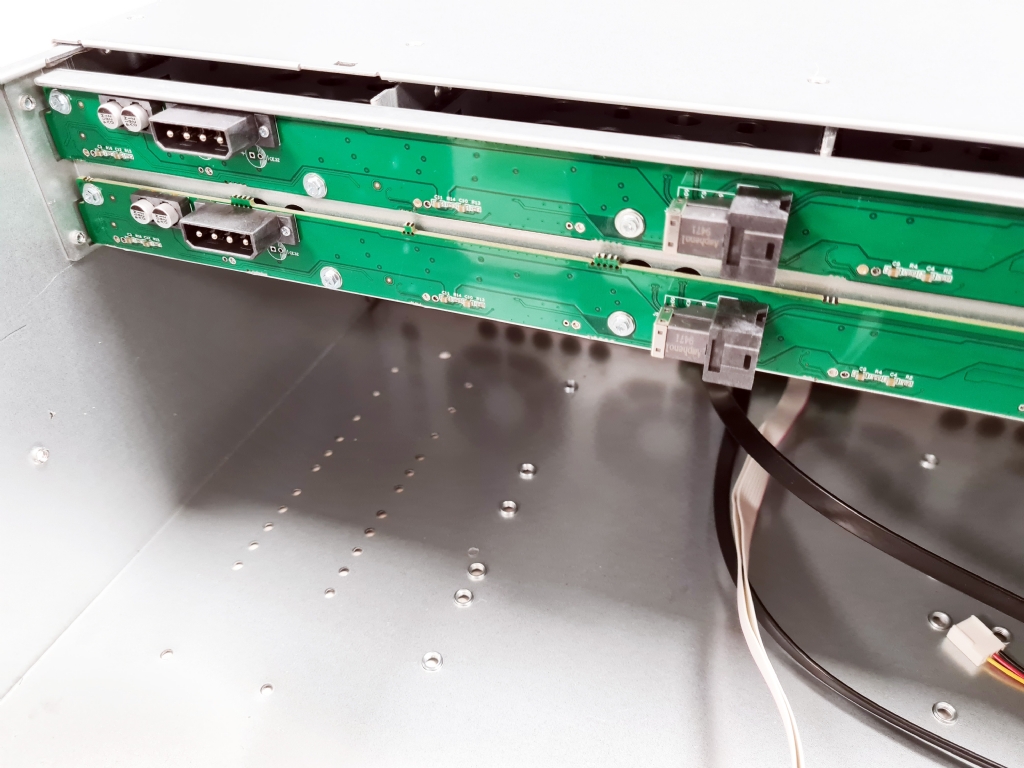

| Hot-Swap Backplane | 8x SATA/SAS Hot-Swap Bays with 2x SFF-8643 12Gb/s HD MiniSAS Connectors - Supports SATA 6Gbps and SAS 12Gbps Drives 2x Molex Power Inputs |
|
| Expansion Slots | Full Height | 7 |
| Low Profile | 0 | |

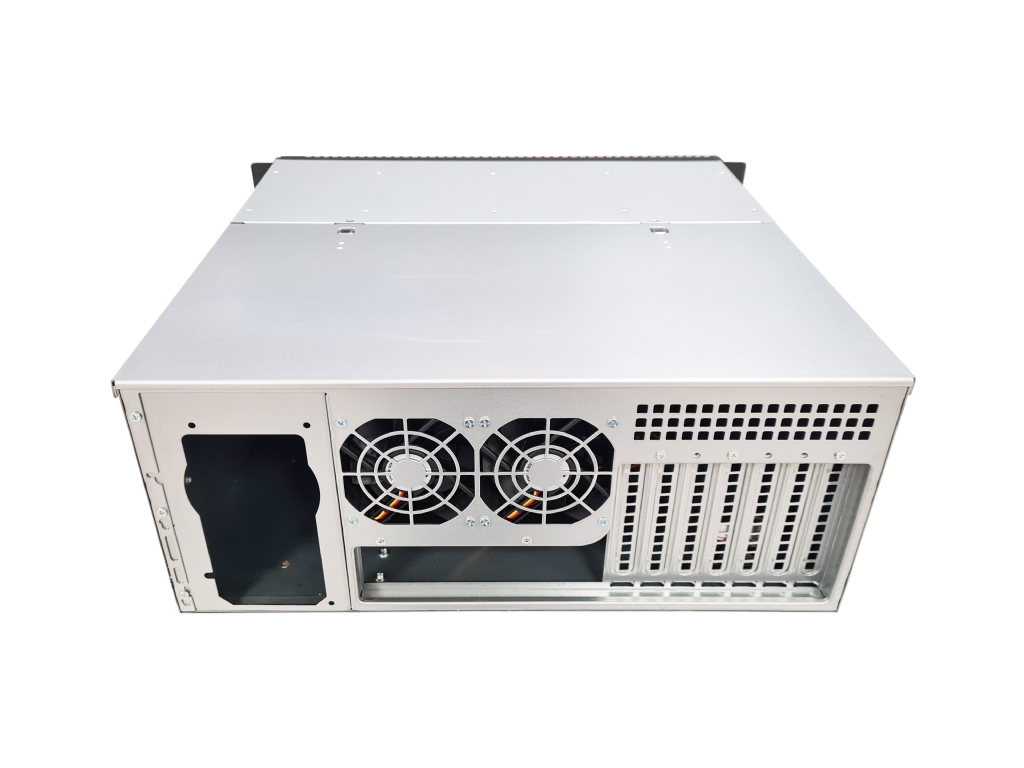

| Cooling | 2 x Rear 80mm 3-pin Fans | |
| Power Supply Form Factor | Standard ATX Mini Redundant (Note Requires Additional Bracket) |
|
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 0 | |
| USB 3.0 | 2 | |
| Serial | 0 | |
| Indicators | Power, LAN, and HDD LEDs | |
| Colour | Silver | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | ( W x D x H ): 19" x 15.74" x 7" (483mm x 400mm x 176mm) | |
| Weight | 11.25 kg (Approx) | |
| What's Included | ||
|
||
