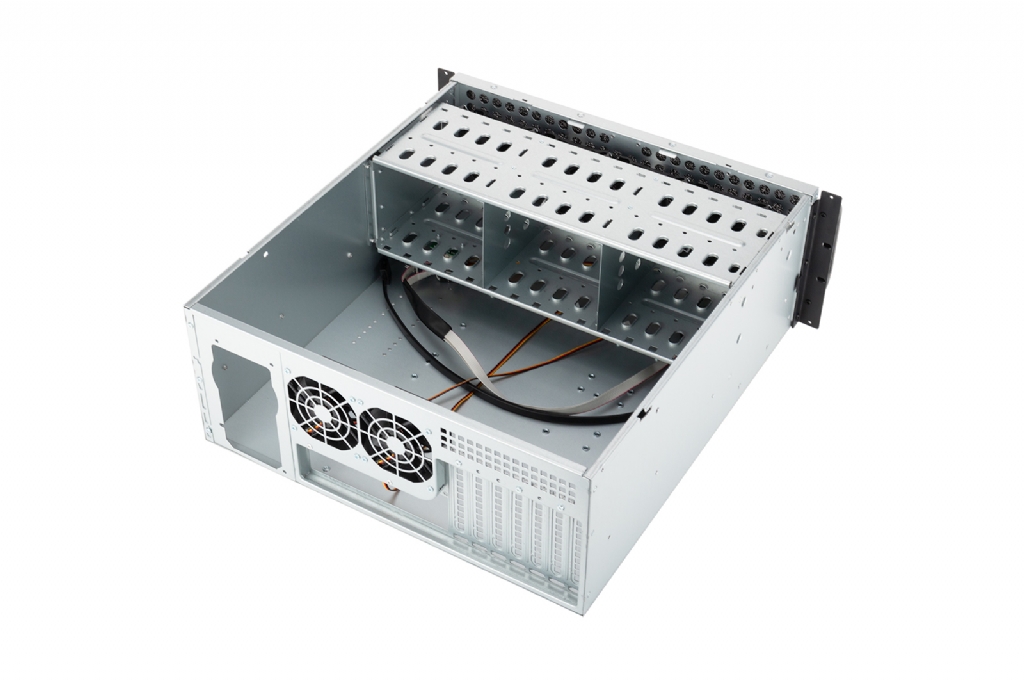

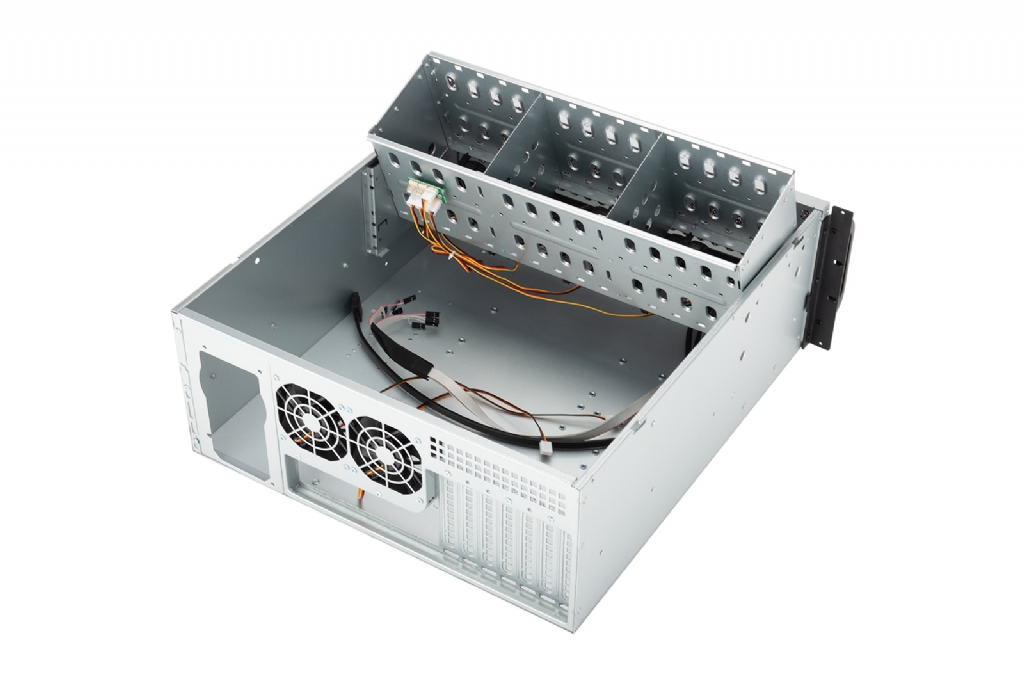

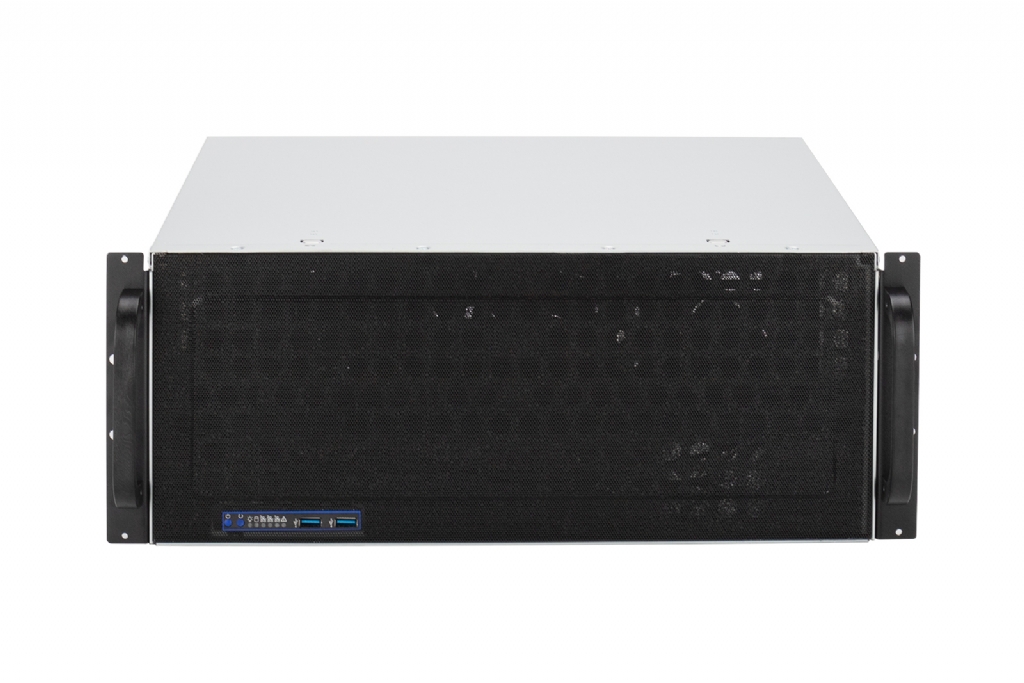

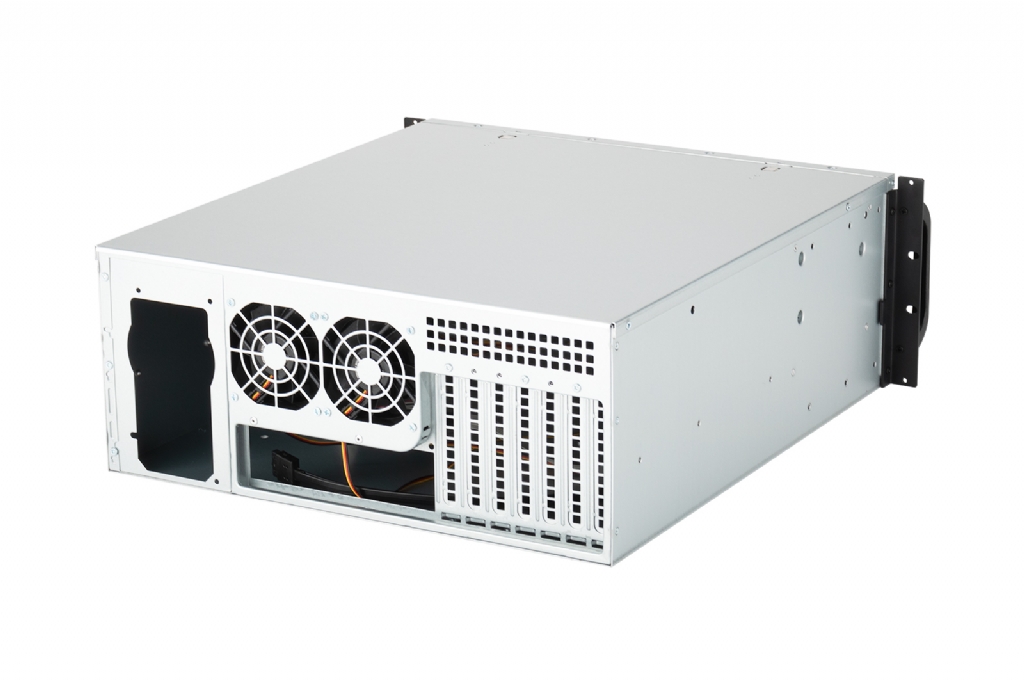

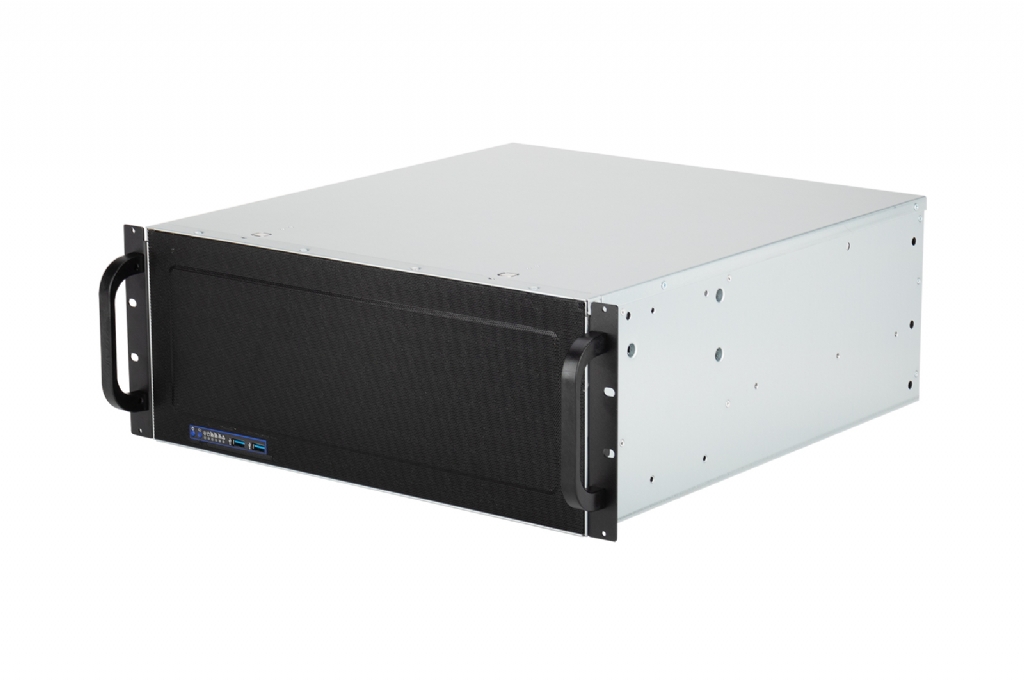

Logic Case LC-4480-WH 4U Rackmount Chassis - 15x Internal 3.5 Bays - 480mm Depth

Logic Case LC-4480-WH 4U Rackmount Chassis - 15x Internal 3.5 Bays - 480mm Depth

PRODUCT CODE SKU: LC-4480-WH
KEY PRODUCT FEATURES:
  • 4U Rackmount Form Factor
  • 450mm Chassis Depth
  • 430mm Chassis Width
  • 177.6mm Chassis Height
  • 4U Mini Redundant PSU Compatibility
  • Standard ATX M/B Form Factor
  • 3 Fixed Bays - External - 5.25"
  • 15 Fixed Bays - Internal - 3.5"
  • 7 Full Height PCI Expansion Slots
servercase-logo

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

01283 576162 | [email protected]

www.servercase.co.uk

BUY LC-4480-WH NOW shopping-icon
  • Reliable and fast service Reliable and fast service
  • Global distribution Global distribution
  • High quality & affordable High quality & affordable
  • Stock held in UK Stock held in UK
logo-icon
Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX (Max 12" X 9.6")
Drive Bays

External 5.25"

3
External 3.5" 0
Internal 3.5" 15
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 7
Low Profile 0
Cooling 2x 80mm
4x 80mm
Power Supply Form Factor Standard ATX or Mini Redundant
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 1
Serial 0
Indicators Power and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 446mm*430mm*178mm (D*W*H)
Weight 10kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
Replaces Model SC-H4-480
