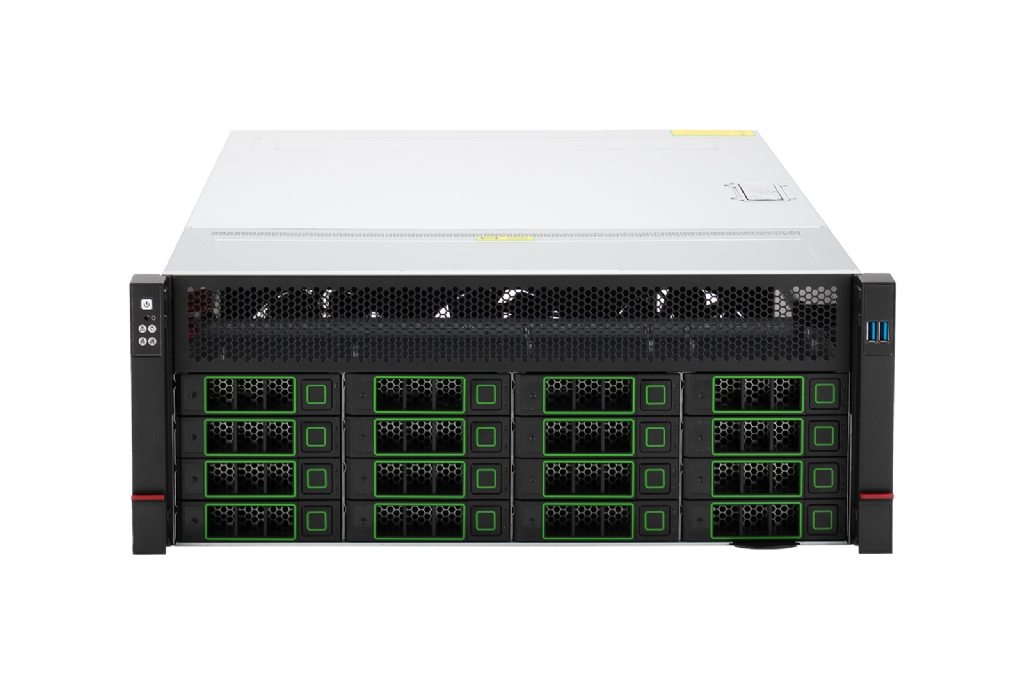

Logic Case LC-4680-16B-WH 4U Rackmount Storage Chassis - 16x 3.5 SATA Hot-Swap - 680mm Depth

Logic Case LC-4680-16B-WH 4U Rackmount Storage Chassis - 16x 3.5 SATA Hot-Swap - 680mm Depth

PRODUCT CODE SKU: LC-4680-16B-WH
KEY PRODUCT FEATURES:
  • 4U Rackmount Form Factor
  • 680mm Chassis Depth
  • 430mm Chassis Width
  • 177.6mm Chassis Height
  • 4U Mini Redundant PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 16 Hot-Swap Bays - 3.5"
  • 7 Full Height PCI Expansion Slots
servercase-logo

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

01283 576162 | [email protected]

www.servercase.co.uk

BUY LC-4680-16B-WH NOW shopping-icon
  • Reliable and fast service Reliable and fast service
  • Global distribution Global distribution
  • High quality & affordable High quality & affordable
  • Stock held in UK Stock held in UK
logo-icon
Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX, Extended ATX
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 0
Hotswap 3.5" 16
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane 16x SAS/SATA 12Gbps with 4x SFF-8643 Connectors
Expansion Slots Full Height 7
Low Profile 0
Cooling 3 x 120mm
Power Supply Form Factor Standard ATX or Mini Redundant
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 0
USB 3.0 2
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 680mm*430mm*178mm (D*W*H)
Weight 17kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
Replaces Model SC-4316
